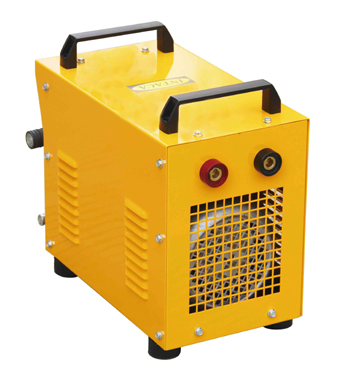

Hydraulic welder with generator is used to weld metal parts, steel pipes, equipment maintenance and est.
◆Adjustable DC welder and welding rod diameter 4mm
◆Generator Max. output AC220V 2KW and also providing for other equipment and lighting
◆Light weight and small size and east to move
◆Connecting hydraulic power unit with quick-couples
Type |
HW190 |
Weight (kg) |
35 |
Flow (lpm) |
30~40 |
Pressure(bar) |
90~175 |
Size(mm×mm×mm) |
500×250×360 |
Welding current (A) |
40~190 |
Operating voltage(V) |
80 |
Welding rod (mm) |
Φ1.6~3.2(flow 30l)
Φ1.6~4(flow 40l) |
Output voltage (AC) |
220 |
Output power(kw) |
2 | |
