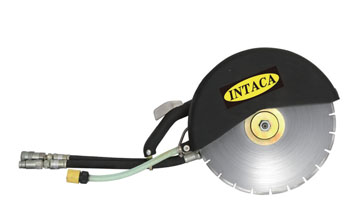

The cut-off saw is used for slab or flat cutting such as concrete, asphalt concrete and metal materials. If the cut-off saw with a cart, it permits the operator to stand or walk behind to have deeply cutting concrete while operating the saw. The saw features a powerful hydraulic engine, and even the saw blade stuck without damage.
◎Features
◆Built-in flow control valve to prevent over speeding
◆With the rotation axis brake
◆Calibrated manual depth adjustment
◆Accommodate a water tank for cooling
◆Counterclockwise the blade cutting rotating for dust suppression
◆Replace with the wide blade for cleaning gap
◆Replace with the special blade for cutting metal materials
Specifications
|
Type |
CS09 |
CS09T |
|
Weight(kg) |
9 |
70 |
|
Length(mm) |
530 |
800 |
|
Width(mm) |
280 |
500 |
|
Output flow (lpm) |
26-34 |
26-34 |
|
Operating pressure(bar) |
105-140 |
105-140 |
|
Diameter of blade(mm) |
355 |
355 |
|
Cutting depth(mm) |
125 |
125 | |
